Description
1. Product Introduction:
The 49-inch 3.5mm LCD splicing unit features factory-installed ultra-narrow bezel panels with a physical seam width of just 3.5mm. Powered by a direct-lit LED backlight, it delivers enhanced brightness uniformity and wider color gamut. Designed for industrial-grade reliability, this system boasts robust stability and offers comprehensive connectivity with integrated HDMI and multiple video signal sources.
2. Features:
- Using hard screen technology, the viewing Angle is large, the response speed is fast, the color restoration is high, and there is no water ripple deformation under hand pressure;
- 5mm ultra narrow edge to achieve perfect splicing, the picture display is more perfect;
- The ultra high physical resolution of 1920*1080 makes the picture more delicate;
- 1200:1 ultra high contrast, the picture display is more vivid, color performance is more outstanding;
- Using the direct LED backlight mode, the brightness performance is more uniform;
- The viewing Angle is 178°, approaching the horizontal;
- Adopt automatic color and image enhancement engine technology, improve the image details, picture performance more beautiful;
- Supporting software spread spectrum technology can effectively reduce EMI amplitude, the whole machine is an all-metal structure, anti-radiation, anti-magnetic field, anti-strong electric interference;
- Industrial design, high reliability, high stability;
- Users can choose from various installation methods such as maintenance and landing.
3. Specifications and parameters
| Panel parameters | Size | 49” |
| Physical Bezel | 3.5mm | |
| Type of backlight | LED | |
| Resolution | 1920×1080 | |
| Display size (mm) | 1074.24 (H)×604.24(V) | |
| Pixel pitch (mm) | 0.55926 mm x 0.55926 mm | |
| response time | 8ms (typ.) | |
| contrast ratio | 1350:1 | |
| Viewing Angle | 178° (vertical, horizontal) | |
| Colour | 1.07B/10Bit | |
| Color saturation (x% NTSC) | 72% | |
| Percentage shown | 16:9 | |
| Refresh rate | 60Hz | |
| signal interface
(The motherboard model may vary With physical evidence) |
HDMI input interface | *1 |
| control interface | RS232 (RJ45) | RS232-IN x1; RS232-OUT x2 |

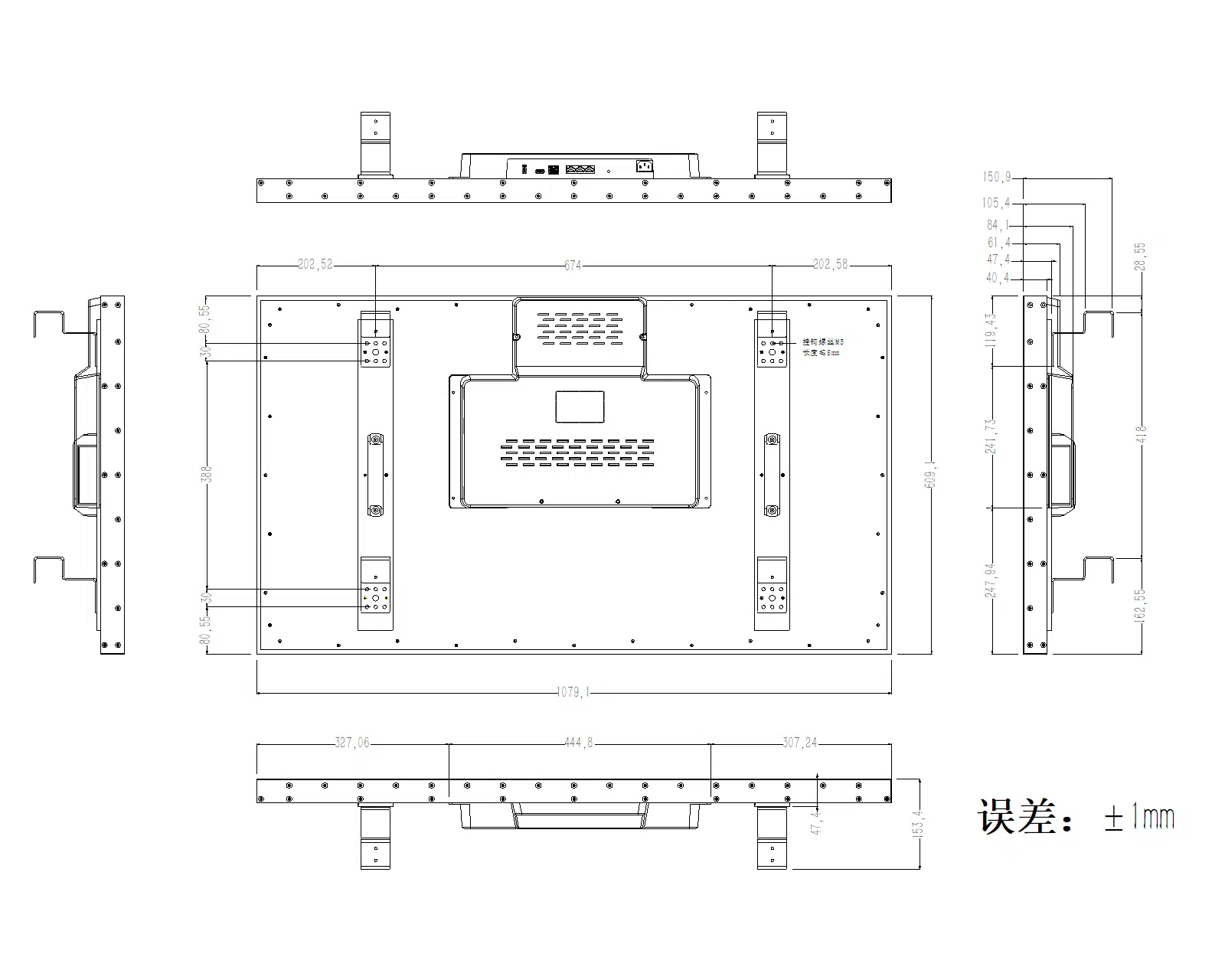

| Structure size | Net weight | 13KG |
| Overall dimensions
(W x H x D) |
1079.1mm*609.1mm*84.1mm | |
| Sheathing material | Metal plate | |
| Power supply power consumption | Power input voltage | 176 V ~ 240 V/AC，50/60 Hz |
| Total machine power | ≤120W | |
| Standby power | <0.5W | |
| Working environment | Working temperature | 0℃～40℃ |
| Humidity at work | 20%～85% RH Non-Condensing | |
| Storage temperature | -10℃～60℃ | |
| Storage humidity | 10%～90% RH Non-Condensing | |
| Language | OSD | English/ Chinese |
| Accessory | Power Cable | *1 |
| Network Cable | *1 | |
| Certificate | *1 | |
| Warranty card | *1 |
Note: the actual seam is related to the processing technology and installation technology, there is a certain error, please refer to the actual product for details.
